.:: NurbsCurve VSL material experiments 2 ::.
PROJECT: NurbsCurve VSL material experiments 2 [zipfile 42kb]
This project contains some simple VSL materials for coloring a nurbs curve along the U direction.

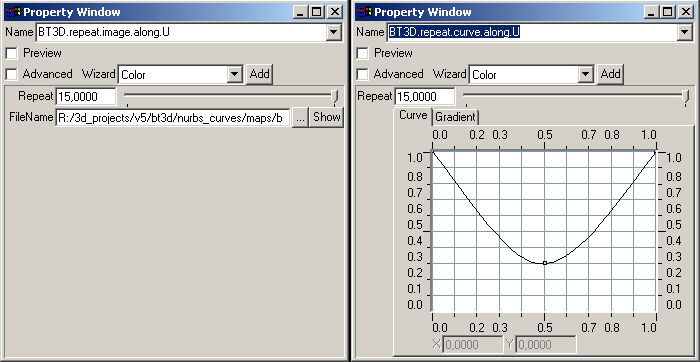

    The included materials use the following parameters:
The 'Repeat' value controls how often the image or curve pattern is repeated in U direction of the curve.
The 'Image' material uses an image file while the 'curve' material uses a curve to control the color.

Note:
These materials are useful as a start to build your own VSL material. If you open the VSL Property Window and switch to the advanced mode, you will find a variable called 'ModUV'. This defines the modified UVcoords which you also can use for bumpmapping or whatever ;)
